Constructed from AISI 316 stainless steel. Mirror Polished Finish.
The HS612 is ideal for boats up to 9 m (30 ft).
The HS612 accepts chain up to 6 mm and is fitted with a rope tensioner.
It comes with built-in chain counter sensor.
Lifetime warranty on motor water ingrees.
6 to 9 m ; 20 to 30 ft.
600W/12V
540 kg - 1188 lbs
6mm-7mm DIN766; 1/4"HT G43
12mm ~ 14 mm
Compact design to save deck space, the HS612 delivers smooth, low-noise motor and gear performance under deck. This robust windlass includes a capstan for optional warping, a stainless steel vertical shaft, and achieves a high anchor drop speed of 40 m (120 ft) per minute. Manual free fall is controllable via an adjustable clutch. Constructed from hand mirro polished AISI 316L stainless steel for long-lasting reliability, it supports all-chain or rope-chain setups. Powered by an IP68 waterproof motor, this vertical waterproof anchor windlass guarantees stable, maintenance-light operation.

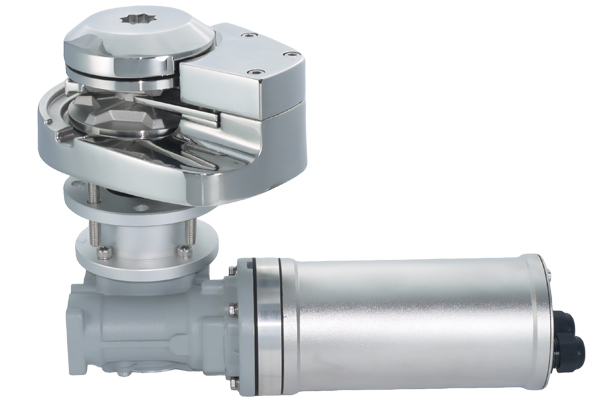

Vertical Windlass for Boats up to 9 m (30ft)
600W / 12V
6 to 9 m ; 20 to 30 ft.
Up to 4,000kg / 8,800 lbs
180 kg - 396 lbs
540 kg - 1188 lbs
35 m - 115 ft per minute
26 m (85 ft) per minute (Approx. )
6 mm or 7 mm DIN 766 ; 1/4″ or 5/16" HT G43
12 mm to 16mm; 1/2″ to 5/8"
6 to 10 kg ; 13 to 22 lbs
Chain: 6 mm DIN766 + Rope: 12 mm
Chain: 7 mm DIN766 + Rope: 14 mm
Chain: 1/4" HT G43 + Rope: 9/16" (12 mm or 14 mm)
Chain: 8 mm DIN766 +Rope: 16 mm (5/8")
6 mm DIN766 30 to 50 m ; 1/4"HT G43 15 to 25 ft in combination with rope.
5 M of 6 mm Chain + 75 M of 12 mm Rope; 15ft of 1/4" Chain + 250ft of 1/2" Rope;
16mm² to 25mm² (2 to 4 AWG) (depending on cable length)
60 A
20 to 40mm (3/4 to 1.5″) (Up to 64mm / 2.5″ with customer supplied bolts)
12 kg - 26 lbs
Included with Purchase: Windlass Unit, Motor & Gearbox, Solenoid, Circuit Breaker, Handle, Gear Box Backing Plate, EPDM Base Gasket, Thread Locker, Hardware, Mounting Template and Installation Quick Guide.
