Constructed from AISI 316 stainless steel.
The MX2 is ideal for boats up to 8 m (25 ft).
Ideal for Deck Mounting: IP68 Waterproof Motor.
Designed to get wet and thrive in harsh marine environments.
Lifetime warranty on motor water ingrees.
Boats up to 8m (25ft)
1000W/12V
850 kg / 1,880 lbs
Holds 100m of 8mm Rope
44 m (145ft) per minute

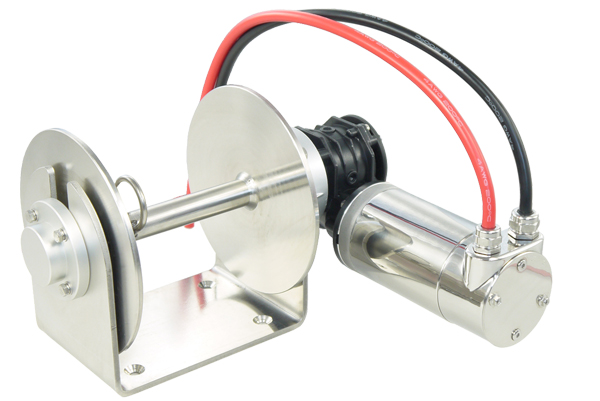

The Hiniu MX2 Anchoring Drum Winch is designed for boats up to 8m in length. It features a 1000W purpose built permanent magnet motor, with a polished 6mm 316 Stainless Steel construction, a solid machined 316SS Spool shaft. Drop/Retrieval rate of 39m per minute with a 1200kg max pull on empty drum, 3600kg static Holding Power at anchor. MX2 is simple to mount onto saltwater vessels up to 8 m, and suitable for substantially larger craft in freshwater applications.
Combining performance, reliability and raw power within a compact frame design, the MX2 is the ideal solution for most trailer‑boat fishermen.
Drum Winch for Boats up to 8 m (26ft)
1000W / 12V
Boats up to 8 m (26 ft)
260 kg / 570 lbs
850 kg / 1,880 lbs
44 m - 145 ft per minute
26 m (85 ft) per minute (Approx. )
6 mm or 8 mm DIN766; 1/4″ or 5/16" HT G43
4 mm to 8 mm ; (1/4" to 5/16")
Up to 15 kg (33 lbs)
90 m of 8mm Double Braid Nylon Rope + 7M of 6mm chain
150 m of 6 mm Dyneema rope + 7M of 6 mm Chain
140 m of 6 mm Double Braid rope + 7M of 6 mm Chain
16mm² to 25mm² (2 to 4 AWG) (depending on cable length)
80 A
19 kg - 42 lbs
Included with Purchase: Windlass Unit, Motor & Gearbox, Solenoid, Circuit Breaker, Handle, Gear Box Backing Plate, EPDM Base Gasket, Thread Locker, Hardware, Mounting Template and Installation Quick Guide.
