Constructed from AISI 316 stainless steel. Mirror Polished Finish.
The CX1500 is ideal for boats up to 22 m (70 ft).
Every Hiniu Marine Capstan Includes a 5 + Life Warranty
Heavy duty dual direction motor in 12V & 24V
Lifetime warranty on motor water ingrees.
13 to 22 m (45 to 70 ft)
1500W/12V
1100 kg / 2400 lbs
16mm², 25mm², 35mm²
12mm ~ 19 mm (1/2″-3/4″)

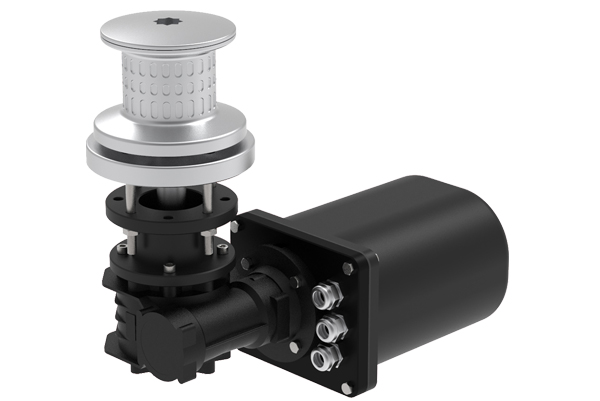

This Hiniu SS316 CX1500 capstan designed to suit Boats 13-22 m (45–70ft). It provides reliable and heavy duty operation for mooring, warping and anchoring for all recreational and commercial applications. Efficient and quick they can be installed independently or as a complete system with windlasses. Manufactured to the highest quality standard, featuring heavy chrome and gear drive assembly. Accommodating varying deck thicknesses, they are popular for line hauling and fishing purposes. Available in 12 & 24 volt, Hydraulic & AC options.
Capstan for Boats up to 22 m (70ft)
1500W / 12V
13 to 22 m ; 45 to 70 ft.
360 kg / 800 lbs
1100 kg / 2400 lbs
24 m (90 ft) per minute (Approx. )
10 mm to 19 mm; 3/8" to 3/4"
16mm² to 35mm² (2 to 4 AWG) (depending on cable length)
135 A
20 to 65mm (3/4 to 2.5″)
21 kg - 46 lbs
Included with Purchase: Windlass Unit, Motor & Gearbox, Solenoid, Circuit Breaker, Handle, Gear Box Backing Plate, EPDM Base Gasket, Thread Locker, Hardware, Mounting Template and Installation Quick Guide.
