Constructed from AISI 316 stainless steel. Mirror Polished Finish.
The HS2524 is ideal for boats up to 28 m (90 ft).
The HS2524 accepts chain up to 14 mm and is fitted with a rope tensioner.
It comes with built-in chain counter sensor.
Lifetime warranty on motor water ingrees.
16 to 28 m (55 to 90 ft)
2500W/24V
2000 kg / 4400 lbs
10 mm-14 mm DIN766; 3/8"-1/2" HT G43
16 mm ; 5/8"

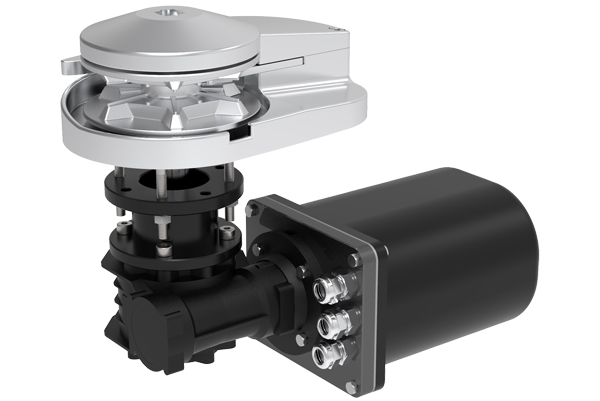

Compact design to save deck space, the HS2524 delivers smooth, low-noise motor and gear performance under deck. This robust windlass includes a capstan for optional warping, a stainless steel vertical shaft, and achieves a high anchor drop speed of 40 m (120 ft) per minute. Manual free fall is controllable via an adjustable clutch. Constructed from hand mirro polished AISI 316L stainless steel for long-lasting reliability, it supports all-chain or rope-chain setups. Powered by an IP68 waterproof motor, this vertical waterproof anchor windlass guarantees stable, maintenance-light operation.
Vertical Windlass for Boats up to 28 m (90 ft)
2500W / 24V
16 to 28 m (55 to 90 ft)
Up to 27,216 kg / 60,000 lbs
900 kg / 1980 lbs
2000 kg / 4400 lbs
40 m - 130 ft per minute
26 m (85 ft) per minute (Approx. )
10 mm to 14 mm DIN766; 3/8″ to 1/2" HT G43
16 mm; 5/8"
30 to 80 kg ; 66 to 177 lb
Chain: 10 mm DIN766 + Rope: 16 mm
Chain: 13 mm DIN766
Chain: 3/8" HT G43 + Rope: 5/8" (16 mm)
Chain: 1/2" HT G43
Chain: 12 mm ISO
10 mm to 13 mm DIN766 ; 3/8" to 1/2" HT G43
25mm² to 75mm² (2 to 0 AWG) (depending on cable length)
100 A
Up to 190 mm ( 7.5″)
53 kg - 116 lbs

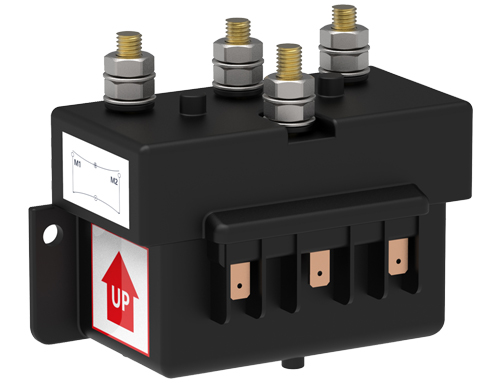

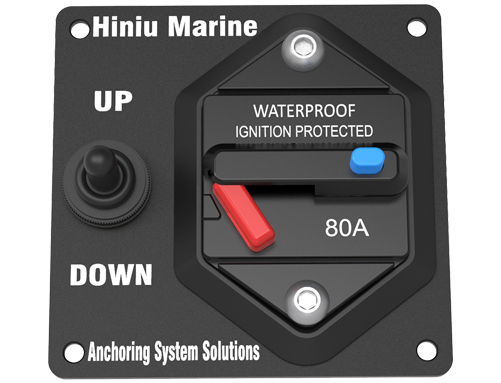

Included with Purchase: Windlass Unit, Motor & Gearbox, Solenoid, Circuit Breaker, Handle, Gear Box Backing Plate, EPDM Base Gasket, Thread Locker, Hardware, Mounting Template and Installation Quick Guide.
