Addressing Wind Energy Innovation Challenges

Waterproof Anchor Windlass, Drum Anchor Winch, Capstan > Projects > Addressing Wind Energy Innovation Challenges

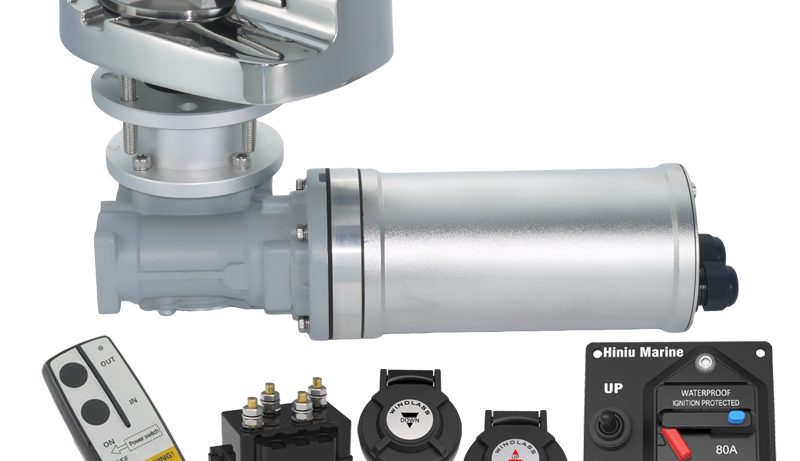

HS612 Anchor Windlass

HS612 IP68 Waterproof Design Vertical Anchor Windlass 600W/12V for Boats up to 30ft, 6mm (1/4") Rope/Chain Gypsy

Motor Power

600W/12V D.C. Motor

Chain Size

6mm-7mm DIN766

Power (KWp)

7000

Total Cost

9000$

Date

14-07-2022

Facebook-f Twitter Youtube Whatsapp

Project Summary

Vertical Windlass-Rope/Chain Gypsy Anchor Winches Suitable for Boats up to 9m/30ft. HS612 is a vertical windlass hides their gearbox&motor below deck, saving deck space and offering a neater, cleaner look appearance. Its rope/chain gypsy design can use the 6mm, 8mm, 10mm ISO or 10mm DIN766 chains and rope(12mm -22mm). Constructed from stainless steel 316 gypsy housing base to ensure water and corrosion resistance to get a reliability and long term usage. Chain size: 6mm-7mm DIN766, 6mm ISO4565, 1/4" HT-G43, 1/4" BBB; 12mm, 1/2" Rope

Technical Specification:

  • Chain size: 6mm-7mm DIN766 short link chain, 1/4″ HT-G43 Chain; 12mm, 1/2″ Rope.
  • Stainless Steel 316 Gypsy Housing Base & Cover.
  • Works with rope/chain combination.
  • Design for Boats: 6m to 9m; 20ft to30ft.
  • Chain size: 6mm DIN766; 6mm ISO4565; 1/4″ HT G43; 1/4″ BBB.
  • Rope size: 12mm, 1/2″in double braid Nylon rope.
  • Anchor size: 6kg to 10kg;13lb to 22lb.
  • Max. Drop Speed: 35m/115ft per. minute;
  • Max. Speed Down: 115ft per min.
  • Boat Deck Thickness: 20mm–35mm.
  • Chain Length: 30m to 50m; 98ft to 165ft.
  • Recommend cable size:6AWG to 4AWG,16mm squares to 25mm squares (normal cable length).
  • Available in two version: with capstan/drum or without capstan.
  • Gypsy designed to DIN766 or ISO4565 or HT G43 anchor chain.
  • Powerful yet extremely compact design vertical windlass.
  • Designed for boats: 6m to 9m / 20ft. to 30ft.
  • Vertical design takes up less space on the deck.
  • Self-locking design gearbox, security upgrade.
  • 5 Years warranty support.
